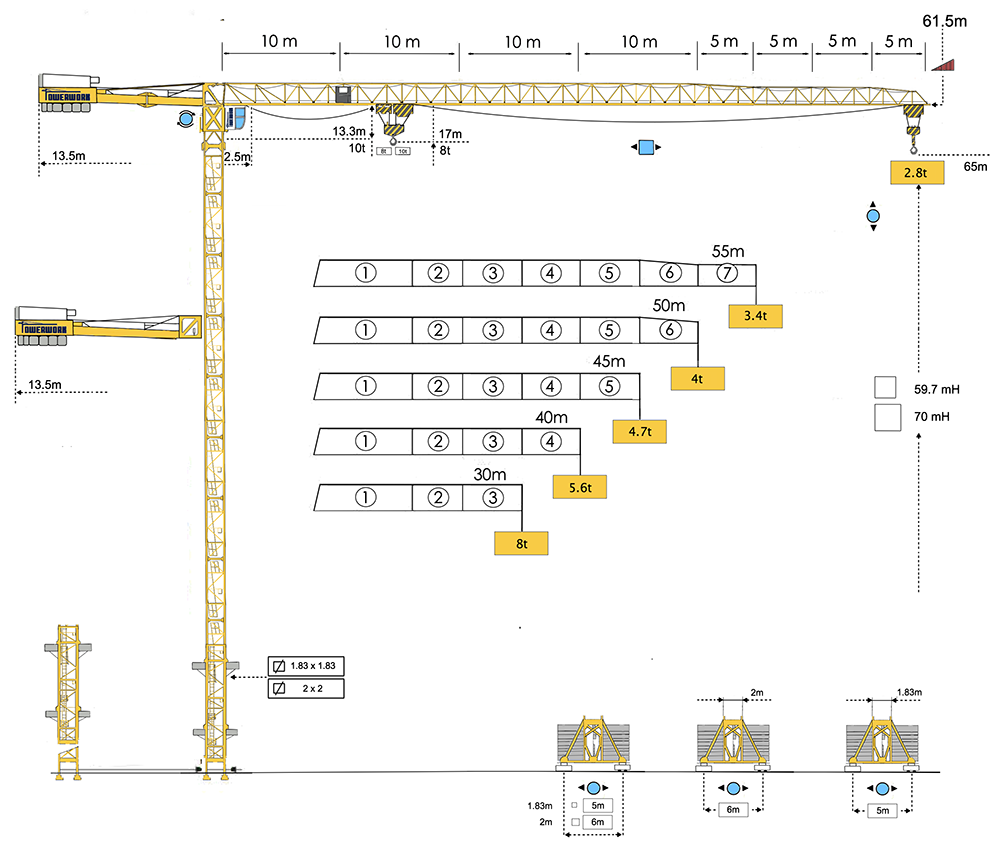

Towerwork LX280 60 T

m serisi

The MCT Crane is so well thought out that you can maximize productivity from your investment without compromising on safety while in use, during maintenance, during erection and dismantling or while being transported between sites.

Model Max Loading Jib Lenght Max. Tip Loading Free Standing High
LX 140 70 12 Ton 70 m. 1400 Kg. 72 m.
LX 170 70 14 Ton 70 m. 1700 Kg. 72 m.
LX 170 70 T 14 Ton 70 m. 1700 Kg. 72 m.
LX 200 65 14 Ton 65 m. 2000 Kg. 72 m.
LX 280 60 16 Ton 60 m. 2800 Kg. 72 m.
LX 320 70 25 Ton 70 m. 3200 Kg. 72 m.
LX 480 80 40 Ton 80 m. 4800 Kg. 72 m.



LX28060Ton



PDF DOWLOAD
